The FX450 Heavy-Duty Automatic CZ purlin roll forming machine is engineered for high-capacity, heavy-gauge structural steel manufacturing. Capable of handling a web width up to 450 mm and material thicknesses up to 4.5 mm, the FX450 stands as Metoform’s most powerful, high-efficiency, and high-precision CZ interchangeable roll former.
Equipped with a fully automated PLC control system, it features a quick C/Z interchanging system that allows operators to switch profiles in just 3 steps (approx. 5 minutes). Additionally, the advanced universal post-cutting system eliminates the need to replace cutting blades when changing purlin sizes, significantly reducing downtime and maximizing workshop productivity.

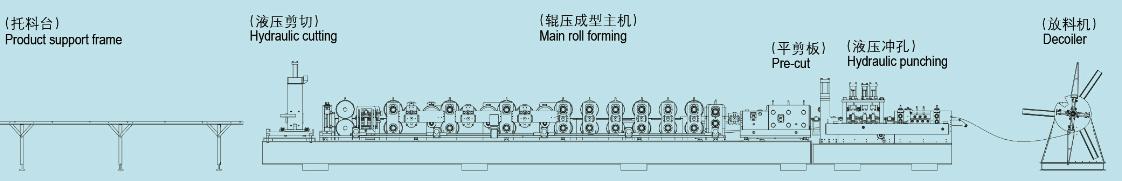

Flow chart: Hydraulic De-coiler → Feeding and Leveling Device →Hydraulic Pre-punching & Pre-shearing → Main Roll Forming System (Gear Box Driven) → Universal Hydraulic Post-Cutting → PLC Control Station → Run-out Product Support Tables

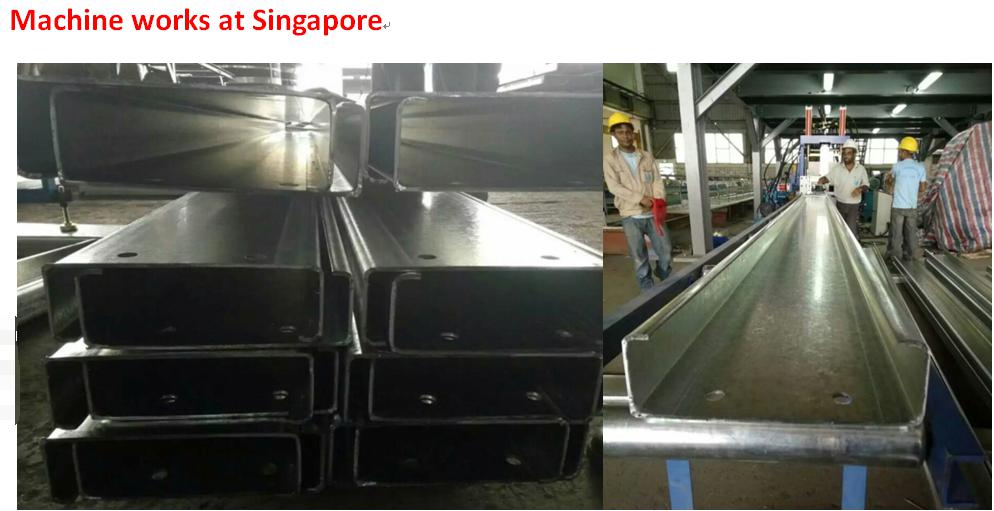

Purlin size:
Main Components

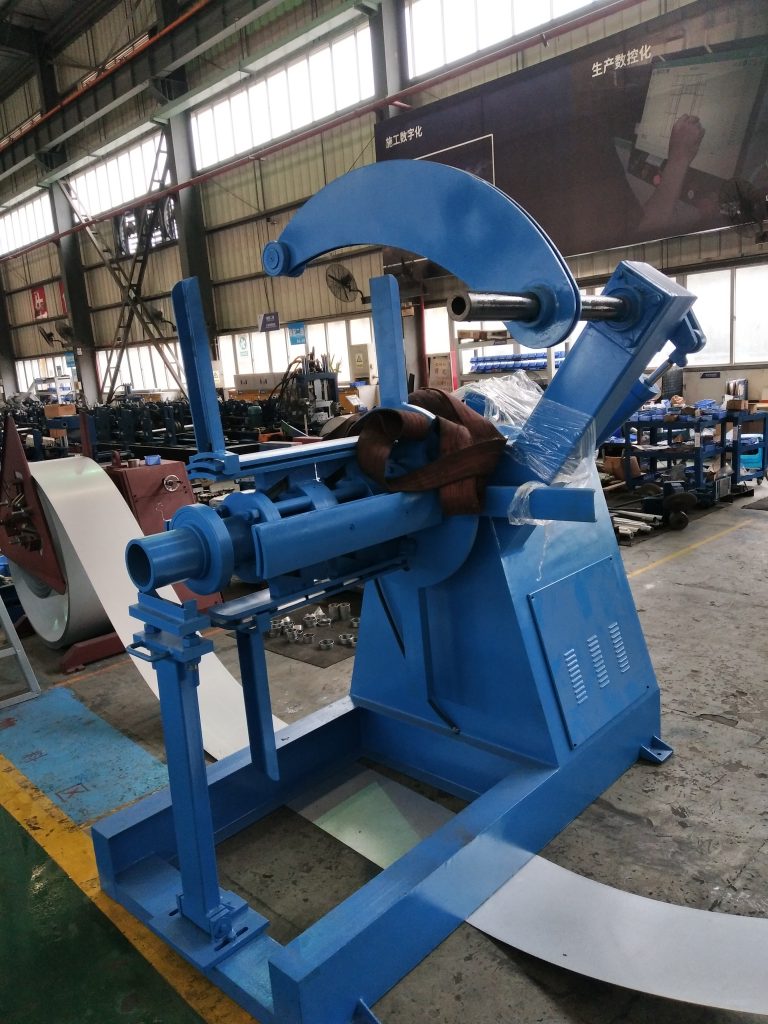

| Hydrulic De-coiler | De-coiler Type: by automatic, Weight capacity: 10T |

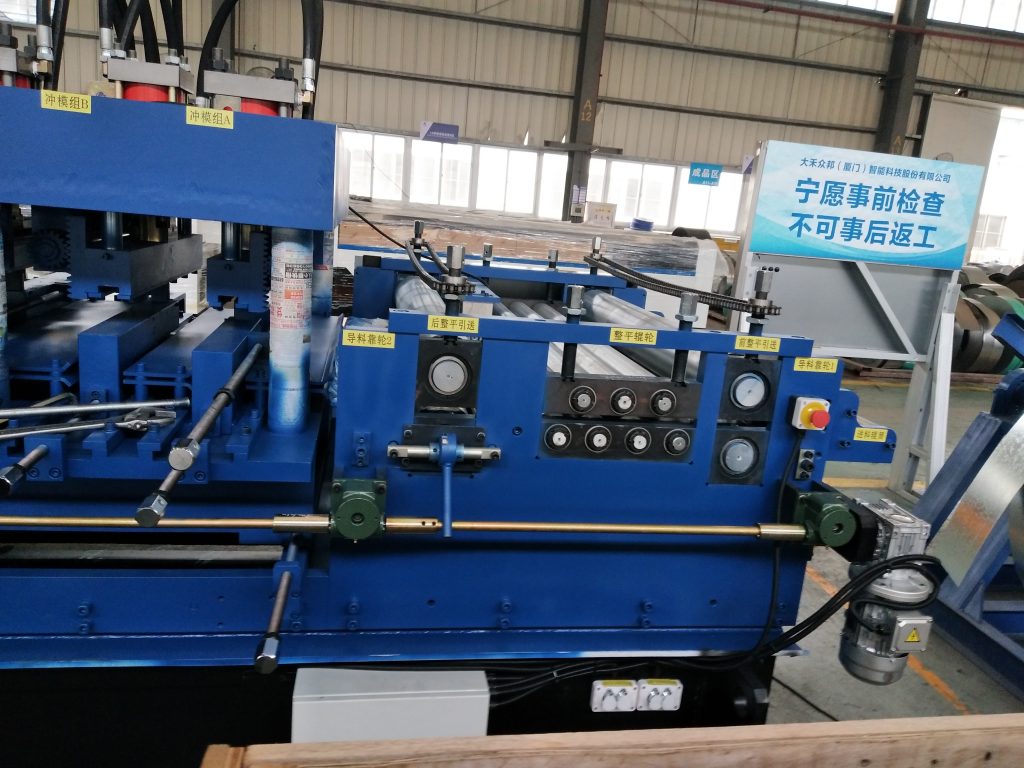

| Feeding and Leveling Device | It used for making the material flat before feeding into the roll forming machine. |
| Pre-punching device | Punching type: by hydraulic Punching quantity: total 3 sets cylinders 5 or 6 holes. (Can be increased by customize) |
| Pre-shearing | It used to cut raw materials before roll forming. |

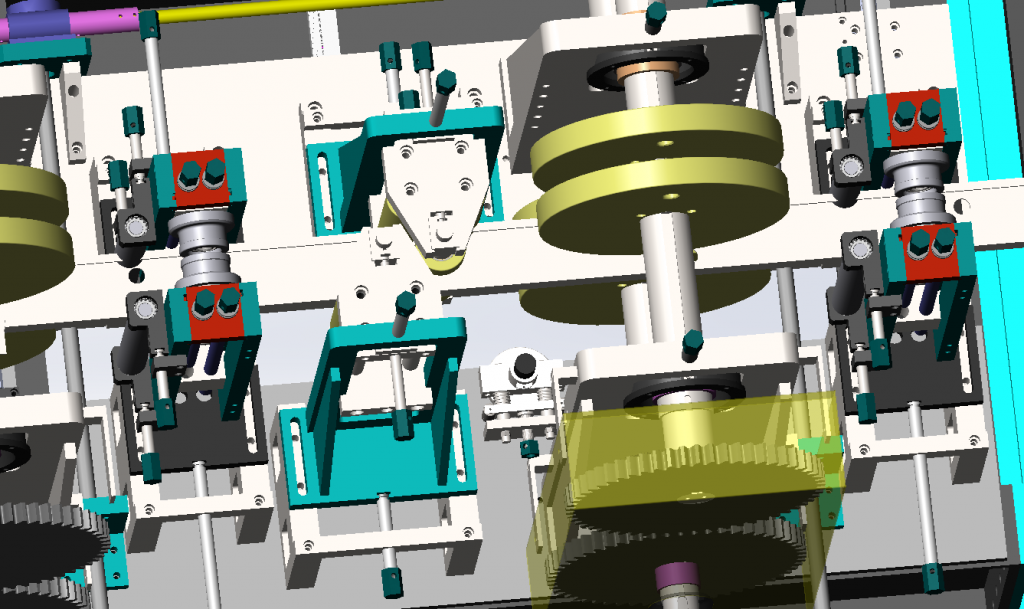

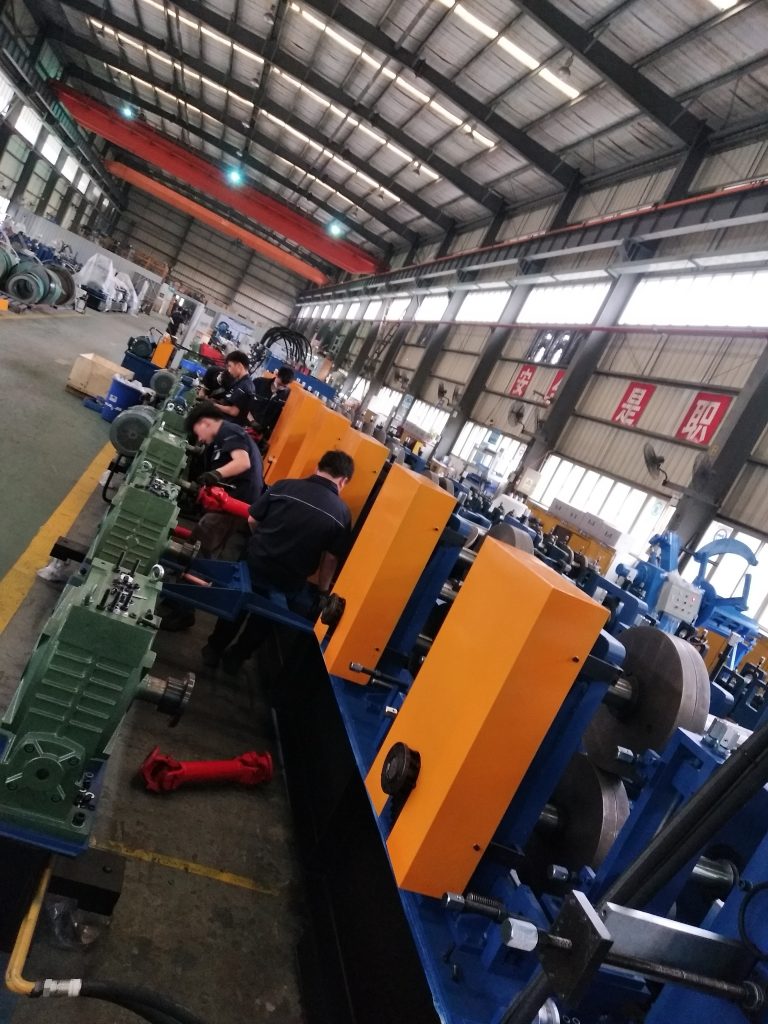

| Main roll forming machine | Driven type: By gear boxes Speed of forming: 0-35m/min Working Speed: 12-18m/min Roller: About 24 groups rollers Roller Material is Cr12 mould steel; Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr. Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible) Adopt fast C/Z interchanging system Quick C/Z interchanging only with 3 steps,around 5mins. |
| Hydraulic Post- cutting | No need to replace the cutting blades when purlin sizes are changed. |
| Product support frame | |
| Control System |
Key Features
-
Heavy-Gauge Capability: Easily forms cold-rolled, hot-rolled, and galvanized steel coils with yield strengths from 350Mpa to 550Mpa.
-
Seamless Automation: Size adjustments and C/Z transitions are fully controlled via the PLC touchscreen, minimizing manual labor.
-
Superior Component Lifespan: Rollers and cutting blades are crafted from premium Cr12 mold steel with specialized quenching treatments for maximum wear resistance and long-term precision.
Technical Specifications
| Machine Specifications | |
| Weight | About 35tons |
| Line Size | About 28m x 3.3m x 2.4m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow and orange | |
| Suitable Raw Material | |
| Material | cold rolled coil , hot rolled coil, galvanized coil |
| Thickness | 1.0-4.5mm |
| Coil width | According to products size |
| Yield strength | 350Mpa~550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 24 Stations |
| Diameter of rollers | φ456MM |
| Diameter of shafts | φ108/φ90MM |
| Roll Forming Speed | 35m/min |
| Production Speed | 12-18m/min(depends on quantity of punching) |
| Forming rollers material | CR12 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main motor power: 18.5KW*2sets |
| Hydraulic unit motor power: 11KW | |
| Electric voltage | According to customers requirement |
FAQ
What is the maximum capacity of the FX450?
It handles material thickness up to 4.5 mm and web widths up to 450 mm, which makes it the most powerful C/Z interchangeable roll former in the Metoform lineup. It is built for heavy-gauge structural steel production.
How is the FX450 roll forming system driven?
By gear boxes, instead of the chain drive used on lighter models. The gear box drive delivers the torque needed to form thick, high-strength steel consistently, with forming speed up to 35 m/min.
What kind of de-coiler does the FX450 use?
A hydraulic automatic de-coiler with a 10-ton weight capacity. It feeds and uncoils heavy coils automatically, so the line does not need manual coil handling.
What steel grades can the FX450 process?
Cold rolled, hot rolled, and galvanized coil from 1.0 mm to 4.5 mm thick, with yield strength from 350 MPa to 550 MPa. This high-strength range is what heavy structural applications require.
What are the FX450 line dimensions and weight?
The line measures about 28 m x 3.3 m x 2.4 m and weighs about 35 tons. Plan your workshop layout and floor loading around these numbers, since the FX450 is a full-scale production line, not a compact unit.
How many forming stations does the FX450 have?
24 stations with rollers of 456 mm diameter and shafts of 108/90 mm. The rollers are Cr12 mould steel with quench treatment, sized for the heavy loads of 4.5 mm forming.
What is the power requirement of the FX450?
Two main motors of 18.5 kW each, plus an 11 kW hydraulic unit motor. The dual motor setup provides the forming force for thick gauge work, and voltage is configured to your local standard.
Machine Video
Applications
Pre-Engineered Steel Buildings (PEB)
Extensively used as essential roof purlins and wall girts for large-span industrial plants, commercial steel structures, and massive warehouses.
Heavy-Duty Industrial Warehousing
Ideal for constructing rigid structural framing, logistical distribution centers, and high-load storage facility architectures.
Solar Panel Mounting Structures
Perfect for manufacturing the robust, weather-resistant, heavy-gauge steel ground support systems required for utility-scale solar farms.
Infrastructure & Infrastructure Framing
Widely applied in the construction of multi-story steel frame buildings, aircraft hangars, and large-scale agricultural facility framing.
