Downspout Roll Forming Machine

Our state-of-the-art Downpipe Roll Forming Machine is a high-precision, automated production line designed for the continuous and efficient manufacturing of gutter downpipes (also called leader pipes or rainwater pipes) from pre-painted steel, aluminium, or other metal coils. This system transforms a flat metal strip into a perfectly formed, consistent downpipe in a single, seamless operation, revolutionising productivity for metal roofing, construction, and building materials companies.

This machine is the ideal solution for producing standard round or rectangular downpipes in various diameters and lengths, significantly reducing labor costs, material waste, and production time compared to traditional methods.

enquiry now

High Efficiency & Automation: Features an automatic uncoiler and cutting system for continuous operation with minimal manual intervention, dramatically increasing output.

  • Precision Engineering: Utilises a robust roll forming system to ensure consistent profile shape, tight lock seams, and superior dimensional accuracy.
  • PLC Control System: An intuitive touch-screen PLC (Programmable Logic Controller) allows for precise adjustment of production parameters, including pipe length, quantity, etc. Fault diagnostics ensure easy operation and maintenance.
  • Customizable Length: Integrated precision flying cut-off unit cuts the formed downpipe to pre-set lengths without stopping the line, ensuring clean, burr-free ends.
  • Durability & Reliability: Built with heavy-duty steel frames and high-quality components to ensure stable performance, low maintenance, and a long service life in demanding industrial environments.
Material Type GI, PPGI,Aluminum coils
Thickness(mm) 0.3-0.8(Customizable)
Yield Strength(Mpa) 230-350
Downpipe Shape Round or Rectangular
Forming Speed(m/min) 15-25
Roller Station Depends
Roller Material 45# steel with hard chrome treatment
Roller Driven Type Chain transmission/Gearbox
Shaft Material 45# steel with heat treatment
Shaft Diameter Ø65
Control System PLC+Touch screen and button
Main Machine Power(KW) 7.5
Hydraulic station Power(KW) 4
Machine Weight(Kg) 6000
Machine size(m) 8.5×1.8×1.7 Depend on final design
  • Decoiler – Holds and feeds steel coils smoothly into the line.
  • Leveling System – Ensures flat, uniform material before forming.
  • Roll Forming Unit – Precision-engineered rollers shape steel into different profiles with accuracy.
  • Hydraulic Cutting System – Provides fast, clean, and burr-free cuts to required lengths.
  • Control System (PLC + Touch Screen) – User-friendly interface for automatic operation and easy adjustments.
  • Output Table – Collects finished products for efficient handling and packaging.
  • Shrinking Device–itcan reduce the port of the downpipe to facilitate lapping.

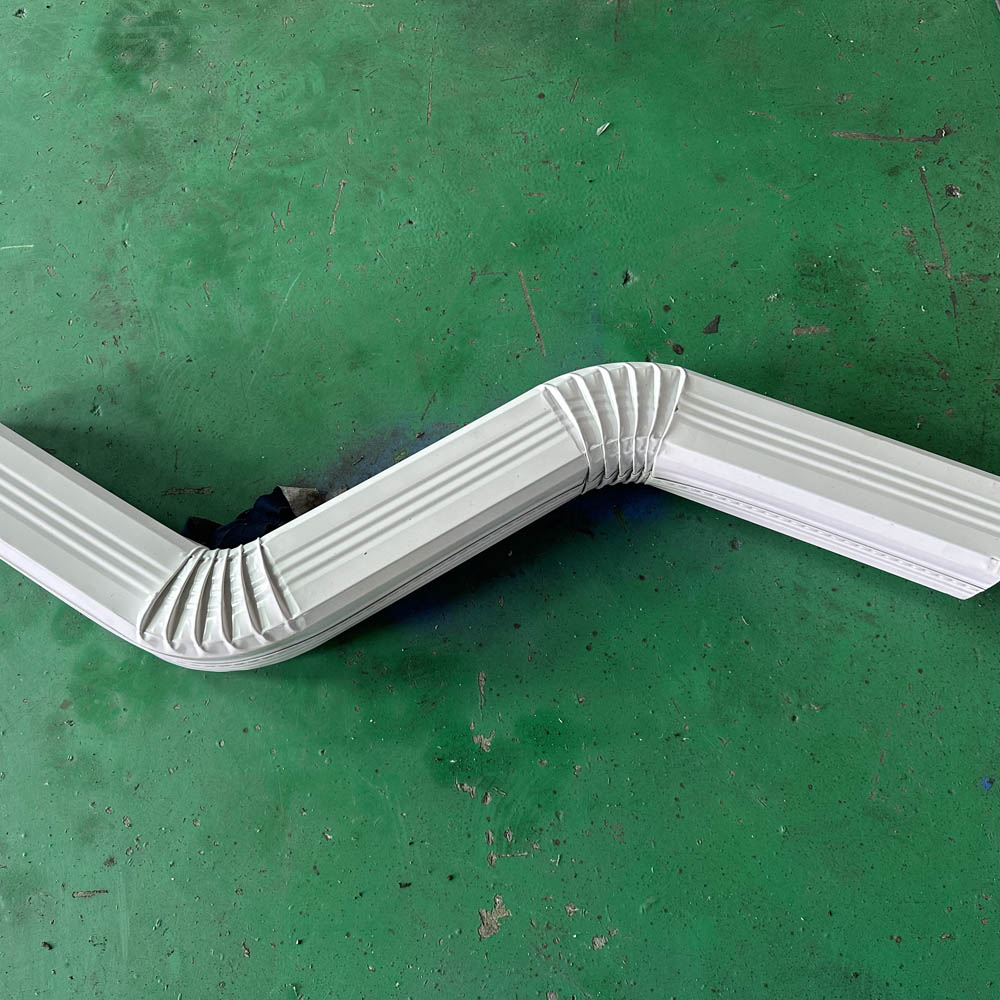

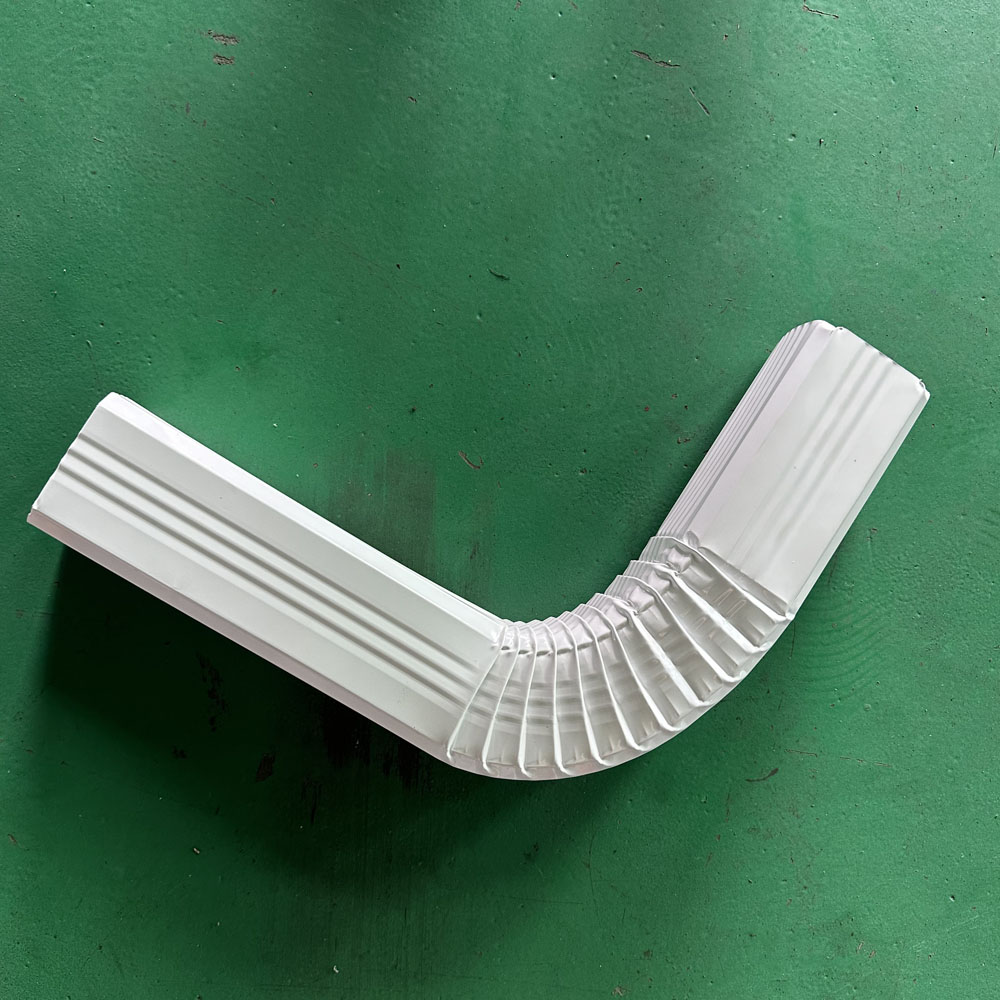

Bending Device–The device can be bent into the desired arc of the downpipe. It can be bent up and down or left and right.

  • Residential and commercial rainwater drainage systems.
  • Components for metal roofing and cladding companies.
  • Custom architectural metalwork.
  • Building material suppliers.
