Light gauge steel framing machine LG150Pro(C150, T: 0.75-1.6mm) is specializing in the production of residential/villa(1-3 floors), suitable for the CC type of connection. It is suitable for wall panel frame/roof truss frame and floor truss.
It has a 21-inch large industrial screen, high-quality components, equipped with a new generation of LG-R control system, optional interface, dynamic display of new functions such as sheet processing, and supports many design software such as: Building master\Vertex\MWF\Keymark etc. Structural innovations include: fine shaft processing technology, easy-to-change mold system, long-life cutting system, high-quality hydraulic system with heat dissipation function, and the anti-extrusion function upgrade and patent.

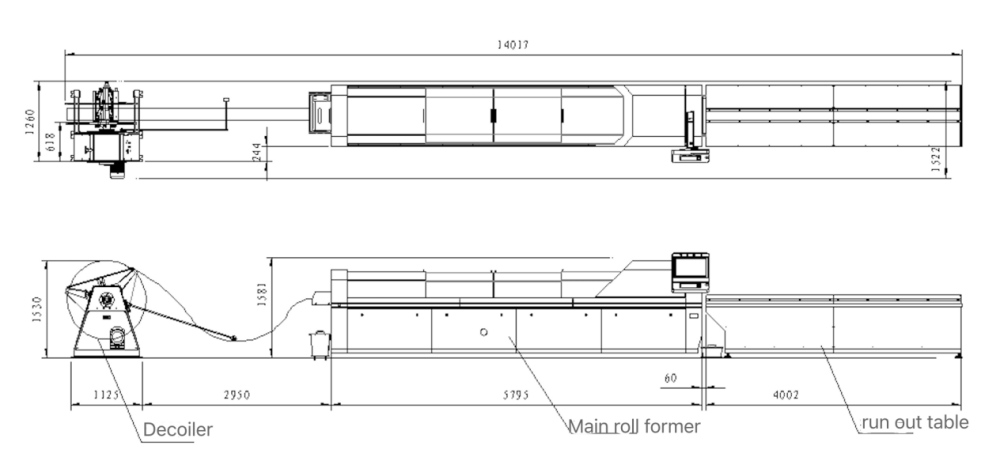

Main Components
- Automaticde-coiler ——————————————————- 1 set
- Leveling Device ———————————————————– 1 set
- Pre-PunchingDevice —————————————————– 1 set
- Roll Forming System—————————————————— 1set
- Post-PunchingDevice —————————————————- 1 set
- Cutting Device————————————————————-1 set
- Online Printer————————————————————–1 set
- PLC Control System—————————————————— 1 set
- Hydraulic Station———————————————————- 1 set
- Out-let Table—————————————————————1 set
Key Features
Precision Forming & Intelligent Manufacturing Solution
Our equipment is built on precision forming technology, delivering long-term reliability and dimensional accuracy to ensure every process is precise and reliable.
Core Process Advantages
- Precision Blanking: High-speed, efficient, and stable performance with an integrated design for easy maintenance, significantly boosting production efficiency and equipment reliability.
- Flexible Adjustment: Compatible with a wide range of materials and enabling quick profile changes to easily adapt to diverse production requirements.
- Superior Functionality: Equipped with expandable features for easy installation; increased punching height to enable complex truss production; and support for quick horizontal assembly and back-to-back truss manufacturing to meet complex component fabrication needs.
Intelligent Control System
- Next-Generation System: Features a 21-inch industrial touchscreen and Windows OS, delivering smooth operation and high-precision control for intuitive and efficient equipment operation.
- Advanced System: Supports multiple quality control modes and diverse data formats, with 4G connectivity for remote maintenance and online monitoring to keep you in control of production anytime, anywhere.
- XBIM Technology: Seamlessly connects design and production data to enable end-to-end digital management.
- MES Direct Connect: Future-proof for data-driven expansion, enabling seamless integration with smart factories and paving the way for unmanned factory operations.
Technical Specifications
| Profile Kind | C Shape |
| Profile Width（web） | 150mm |
| Profile Height(flange) | 41mm or 51mm or customized |
| Material Thickness | 0.75-1.6mm, G500 zinc plated, aluminumzinc plated |
| Design Software | Famous Brand, Optional |
| Roll Forming Stations | 16 stations or as per design |
| Machine Operation System | 21 inches Touchable Screen, with LG-R1 system |
| Standard Machine Speed | 48m/min 400-900 m/h |
| Main Machine Motor Power | 7.5 kw |
| Power Supplier | 380V, 50HZ, 3Phrases, Customized |
| Hydraulic Motor Power | 7.5 kw |
| Total Machine Power | 15kw |
| Hydraul Cylinder Volumn | 160L |
| Hydraulic Temperature Control | Cold Area could select Thermostatic Apparatus. |
| Coolant System | Self Cold, Wind Coolant Device |
| if long time using,strong coolant device optional | |
| Standard Punching&Cutting Tooling | Lip Cut,Service hole,Bolt hole,web notch,Chamfer Cut,Swage,Dimple and Shear |
| Hole Punching Accuracy | ± 0.5 mm |
| Inkjet Printer | Double sides, Standard |
| Main Machine Size | (length) 5m x (width) 1.35m x (height) 1.5m |
| Machine Weight | 4500KGS |
| Decoiler | 3000 KGS |
Machine Video
Applications
Low-rise residential buildings (villas, self-built houses)
This is the most mature and widely used area for light steel structures. It’s particularly well-suited for residential applications requiring rapid construction, unique designs, or high environmental standards.
Multi-Storey Apartments, Hotels, and Dormitories
Light steel structures are also suitable for multi-story buildings of 4-6 stories or even higher, such as talent housing, budget hotels, school dormitories, and nursing homes.
Public Buildings and Commercial Facilities
Light steel structures are also commonly used in schools, kindergartens, hospitals, office buildings, exhibition halls, supermarkets, and more.
Building Additions and Renovations
Modular Buildings and Container Homes
This is an advanced form of industrialized construction. Rooms or even entire building units are completely prefabricated in a factory, complete with interior finishes, and then transported to the site for immediate assembly and installation.
