MC50-250 2.5mm C/U ROLL FORMING MACHINE

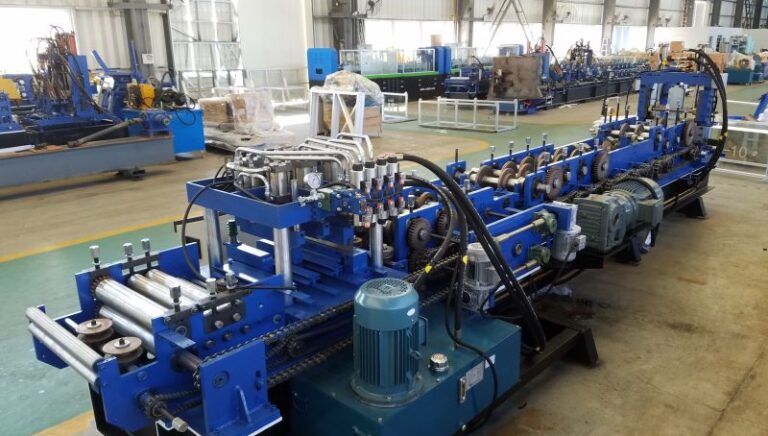

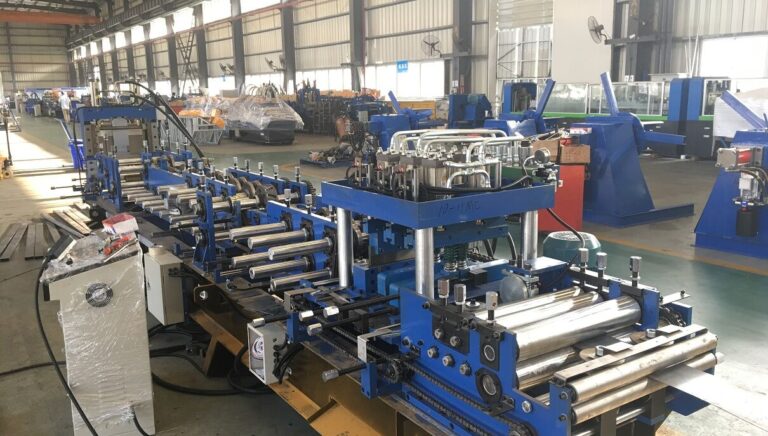

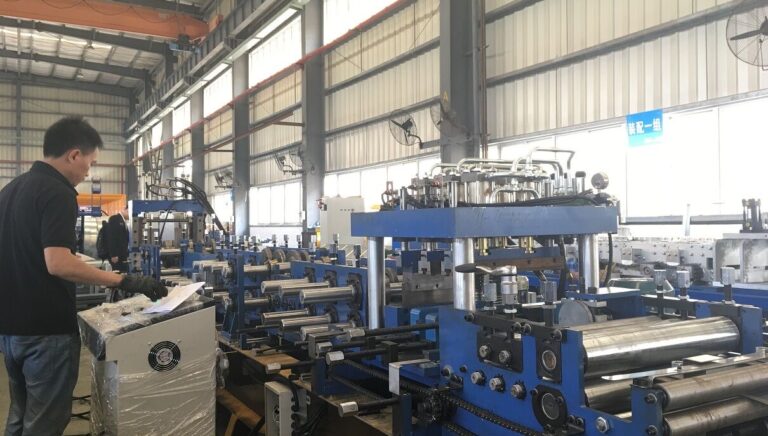

MC50-250 C/U ROLL FORMING MACHINE is a CU type purlin roll forming machine used in the production of steel structure industry. The finished product produced by machinery and equipment is CU steel, which is mostly used for the support of beams and wall beams in housing construction and factory buildings. Applicable materials are “strip steel”, galvanized steel coil, etc. The machine has two cutting systems： Pre shear before roll forming and post hydraulic cutting after roll forming part, which meet the needs of different lengths of production. The minimum size is 50-70mm, more used for the functions of solar mounting.
Details
Punching system with 4cylinders,available for single hole and double holes
Rollers are manufactured from high quality bearing steel GCrl5 and are processed with CNC lathes and heat treatment. Hard-chrome plating or black oxide coating is optional. It includes a feeding material guide roller,and body frame is welded 4oo# H type steel.
PLC control system,specially designed for automatic C purlin punching system.
Main Components
| Decoiler | Holds and feeds steel coils smoothly into the line. |
| Leveling System | Ensures flat, uniform material before forming. |
| Roll Forming Unit | Precision-engineered rollers shape steel into C purlins with accuracy. |
| Hydraulic Cutting System | Provides fast, clean, and burr-free cuts to required lengths. |
| Control System (PLC + Touch Screen) | User-friendly interface for automatic operation and easy adjustments. |
| Output Table | Collects finished C purlins for efficient handling and packaging. |
Key Features
- Wide Size Range: Produces C purlins from 50mm to 250mm with quick size change capability.
- High Precision: Advanced roll forming machine design ensures accurate dimensions and smooth surface finishes.
- Flexible Tooling: Adjustable molds make it suitable for varied production requirements.
- Automation: Equipped with automatic feeding and precise positioning for stable operation.
- Durability: Heavy-duty frame and high-quality rollers guarantee long service life.
- Versatile Applications: Ideal for steel structure buildings, warehouses, garages, and infrastructure projects.
Technical Specifications
| Item | Parameters |
| Coil thickness (mm) | 1.5-3 |
| Max speed (m/min) | 30 |
| Roll stand | 18 |
| Main motor (Kw) | Hydraulic motor, 22 |
| Main shaft (mm) | Ø 100/ 75/ 60 |
| Cutting way | Hydraulic cutting |
| Cutter material | Cr12Mov |
| Punching | 3 sets |
| Control system | PLC |
| Size change | PLC control / Press button |
| CZ interchange | PLC control/ Reverse roller |
Machine Video
Applications
Steel Structure Buildings
Provides strong and lightweight C purlins for industrial and commercial construction.
Warehouses & Workshops
Ensures reliable roof and wall support for large-span buildings.
Garages & Carports
Offers durable framing components for smaller structures.
Highway Guardrails & Infrastructure
Produces high-quality profiles for safety and support systems.
Agricultural Buildings
Ideal for barns, storage facilities, and greenhouses requiring sturdy steel framing.
Prefabricated & Modular Projects
Perfect for quick-installation projects needing precision-made purlins.
