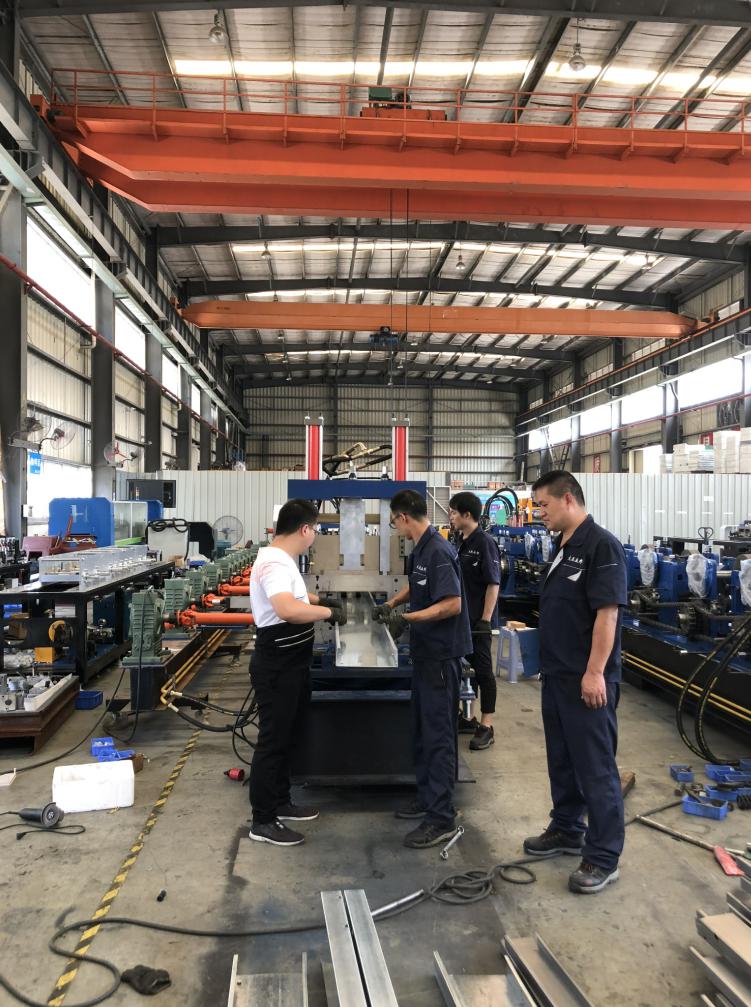

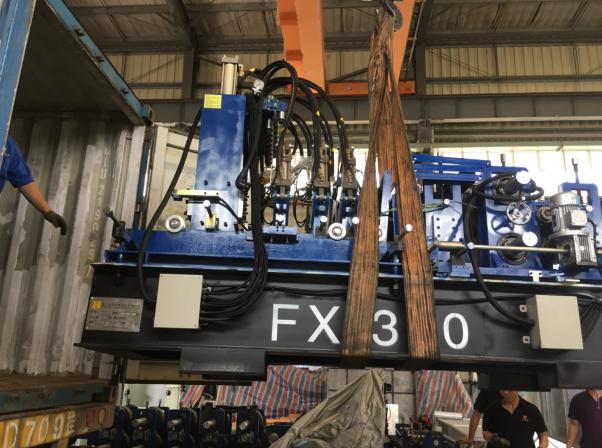

The Metoform FX350 is a fully automatic, high-efficiency C/Z purlin interchangeable roll forming machine engineered for heavy-duty industrial applications. Driven by a robust gearbox system, this production line effortlessly processes raw materials with thicknesses up to 3.5mm and a high yield strength of up to 550Mpa.
Designed for modern steel structure manufacturing, the FX350 integrates an entire production sequence from decoiling to post-cutting. It features a fully automated PLC control system that allows manufacturers to switch web sizes seamlessly from 80mm to 350mm, maximizing production efficiency while minimizing labor costs and material waste.

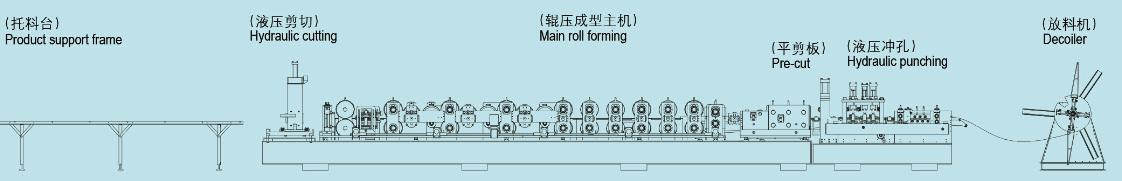

Flow chart: De-coiler → De-coiler → Feeding and Leveling device →Pre-punching & cutting system→ Roll Forming System→Hydraulic Cutting → Hydraulic station →PLC – Cutting Product Support

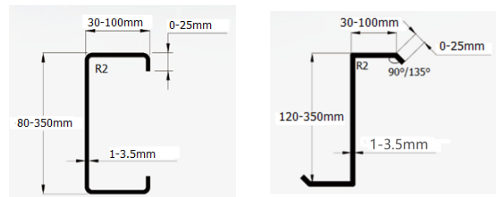

Purlin size:
Main Components

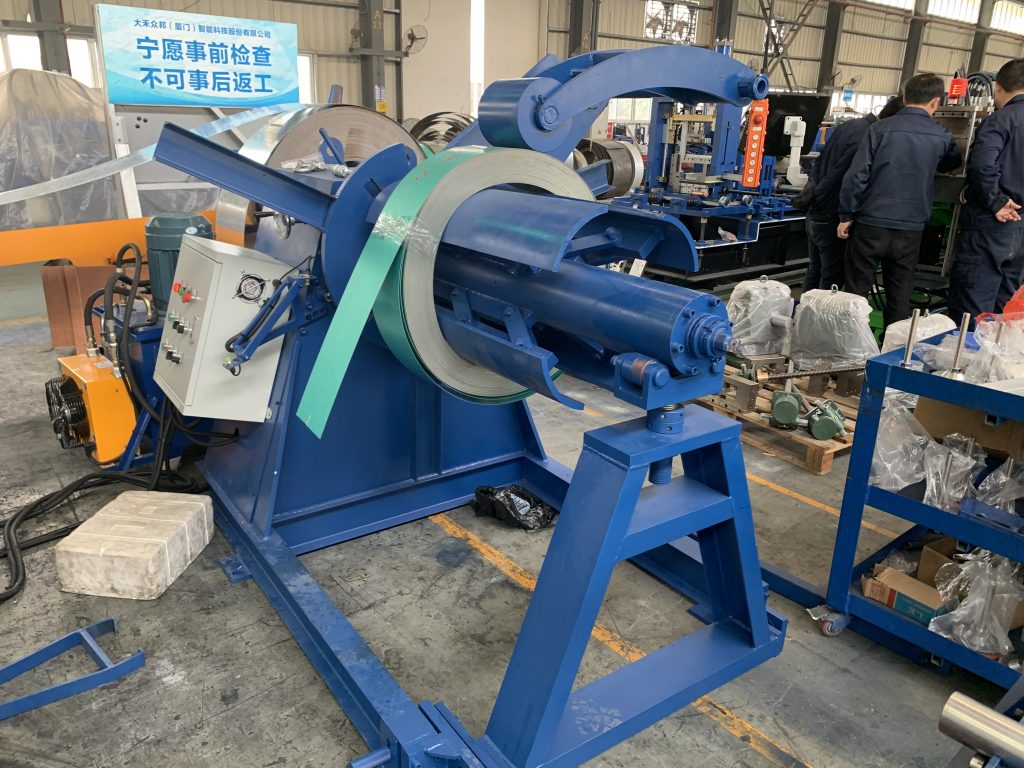

| Hydrulic De-coiler | De-coiler Type: by automatic Weight capacity: 8T |
| Feeding and Leveling Device | It used for making the material flat before feeding into the roll forming machine. |

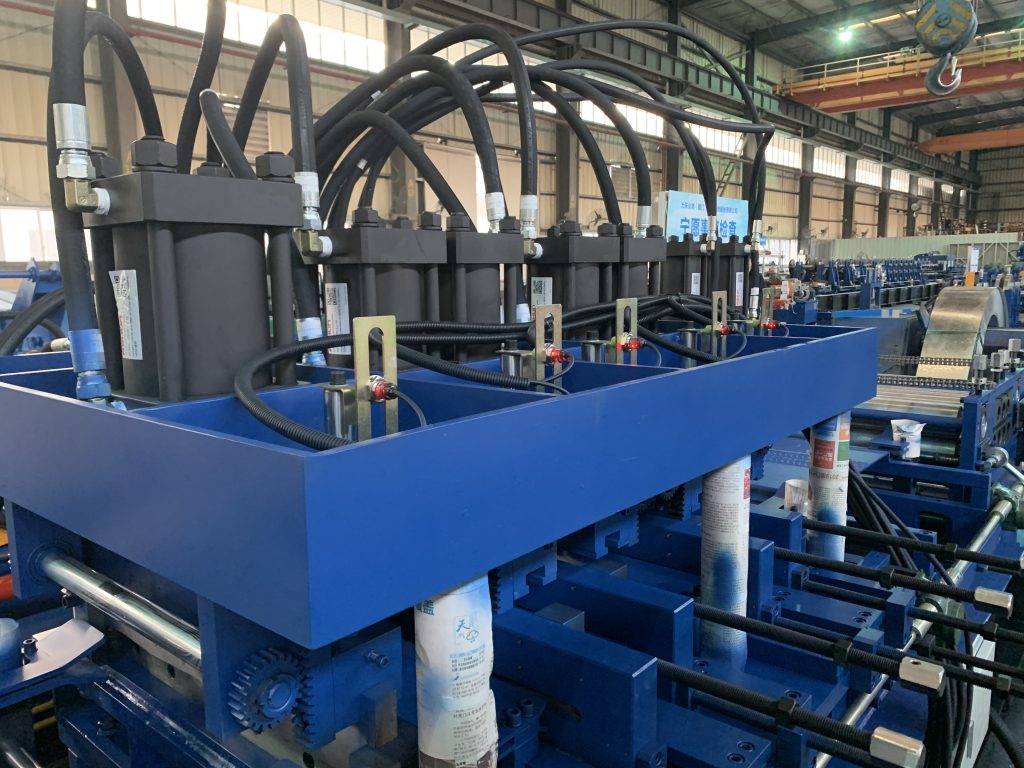

| Pre-punching device | Punching type: by hydraulic Punching quantity: total 3 sets cylinders 5or 6holes. (Can be increased by customize) |
| Pre-shearing | It used to cut raw materials before roll forming. |

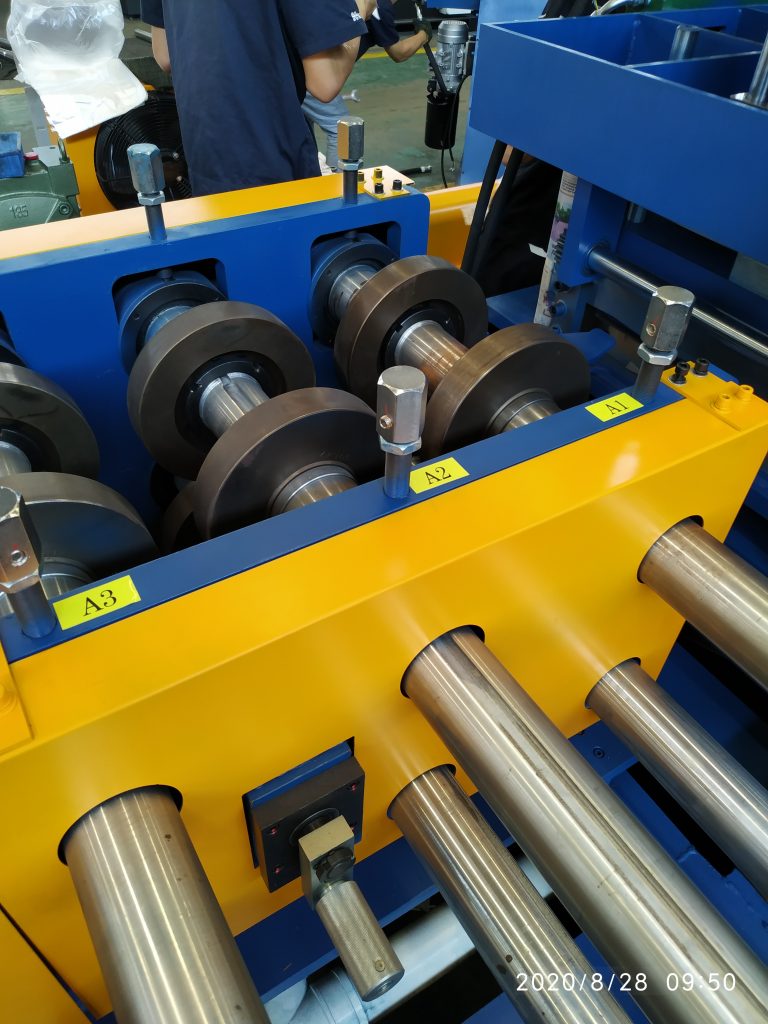

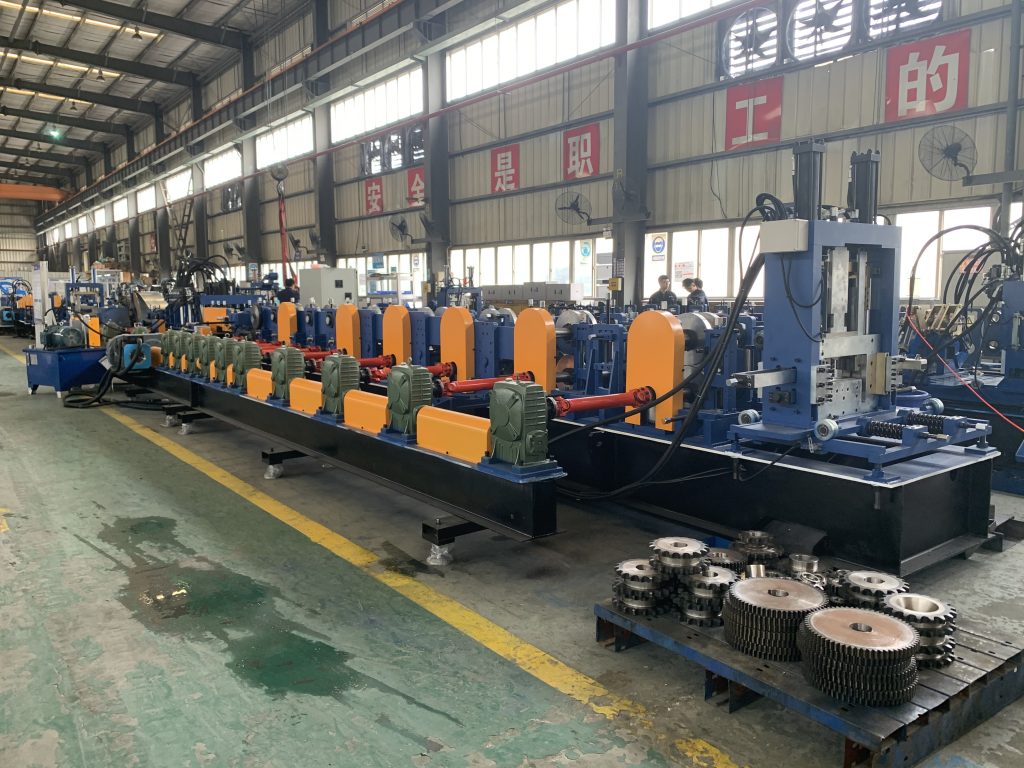

| Main roll forming Machine | Driven type: By gear boxes Speed of forming: 0-30m/min Working Speed: 12-18m/min (Depends on QTY of punches) Roller: About 23 groups rollers Roller Material is Cr12 mould steel(customized) Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr. Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible) Adopt fast C/Z interchanging system Quick C/Z interchanging only with 3 steps,around 5mins. |
| Hydraulic Post- cutting | No need to replace the cutting blades when purlin sizes are changed. |
| Product support frame (can updated to automatic storage run out table) | 6m(2 pieces), no power |
| Control System |
Key Features
-
Fully Automatic Size Changing via PLC: No manual roller adjustments or spacer changes are needed. The web size (80-350mm) and flange parameters are fully automated and easily adjusted through the smart PLC touchscreen.
-
Fast 5-Minute C/Z Interchange: Transitioning between C and Z profiles takes only 3 steps and under 5 minutes, drastically reducing downtime compared to traditional roll formers.
-
Linear Guide-Way Assembly: Equipped with premium linear guide ways, the machine ensures smoother, faster, and highly precise web size shifting.
-
Heavy-Duty Gearbox Drive System: Unlike chain drives, our independent gearbox drive provides superior torque, exceptional stability, and uniform forming force for heavy-duty 3.5mm materials.
-
Flawless Final Product Quality: Advanced roll tooling ensures high-precision profiles with zero flared ends (no open mouth), excellent straightness, and uniform shapes.
-
High Yield Strength Capacity: Robustly engineered to process standard cold-rolled, hot-rolled, and galvanized steel coils with yield strengths up to 550Mpa.
Technical Specifications
| Machine Specifications | |
| Weight | About 19 tons |
| Main Machine Size | About 12.8m x2m x1.95m
(length x width x height) |
| Color | Dark grey on the base (RAL 7011)
Blue on the towers (RAL 5015) |
| Warning color: Yellow,Orange | |
| Suitable Raw Material | |
| Material | cold rolled coil , hot rolled coil, galvanized coil |
| Thickness | 1.0-3.5mm |
| Coil width | According to products size |
| Yield strength | 350Mpa~550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 23 Stations |
| Diameter of rollers | ø360MM |
| Diameter of shafts | ø70-95mm |
| Roll Forming Speed | 30m/min |
| Production Speed | 12-18m/min(depends on quantity of punching) |
| Forming rollers material | CR12 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main motor power: 30KW |
| Hydraulic unit motor power: 11KW | |
| Electric voltage | According to customers requirement |
***NOTE: Upgradeable SERVO MOTOR+ laptop control
Machine Video
Applications
Commercial Infrastructure & Logistics Hubs
For logistics hubs, e-commerce fulfillment centers, and commercial complexes, the FX350 delivers highly uniform C/Z channels. The high-precision profiles ensure superior straightness and zero flared ends, guaranteeing seamless nesting (overlapping) and fast, bolt-ready installation for complex steel structures.
Solar Ground Mounting Systems
The FX350 is an ideal choice for manufacturing heavy-duty solar brackets, posts, and structural rails. It easily processes high-tensile galvanized steel up to 3.5mm, producing rigid solar components engineered to withstand severe outdoor environments, high wind loads, and heavy snow velocity.
Mezzanine Framing & Agricultural Buildings
The rigid profiles are widely used as high-capacity floor joists in industrial mezzanine systems to support heavy machinery and warehouse racking. Additionally, they provide the reliable structural durability required for agricultural facilities, including livestock sheds, grain storage, and large-scale greenhouses.
